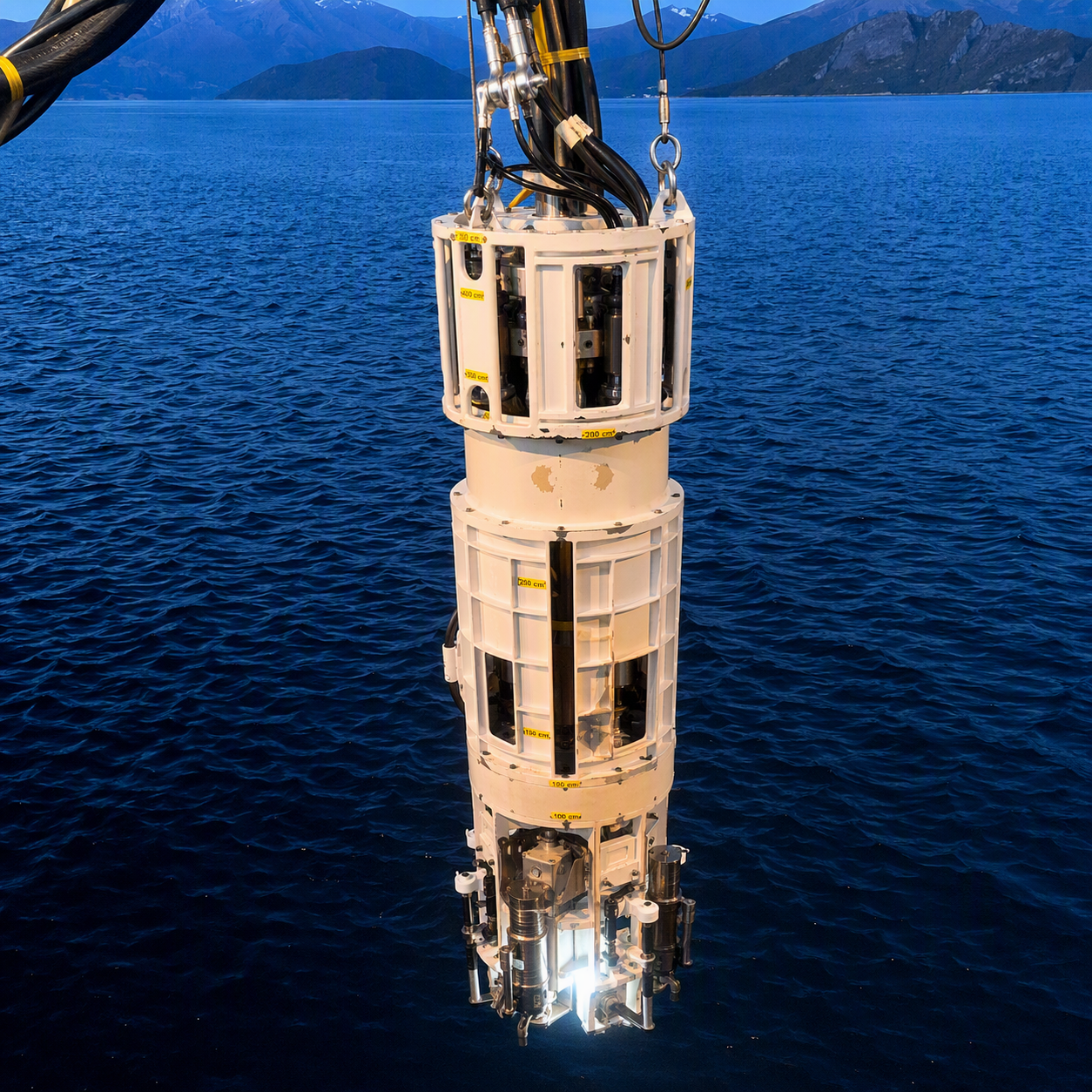

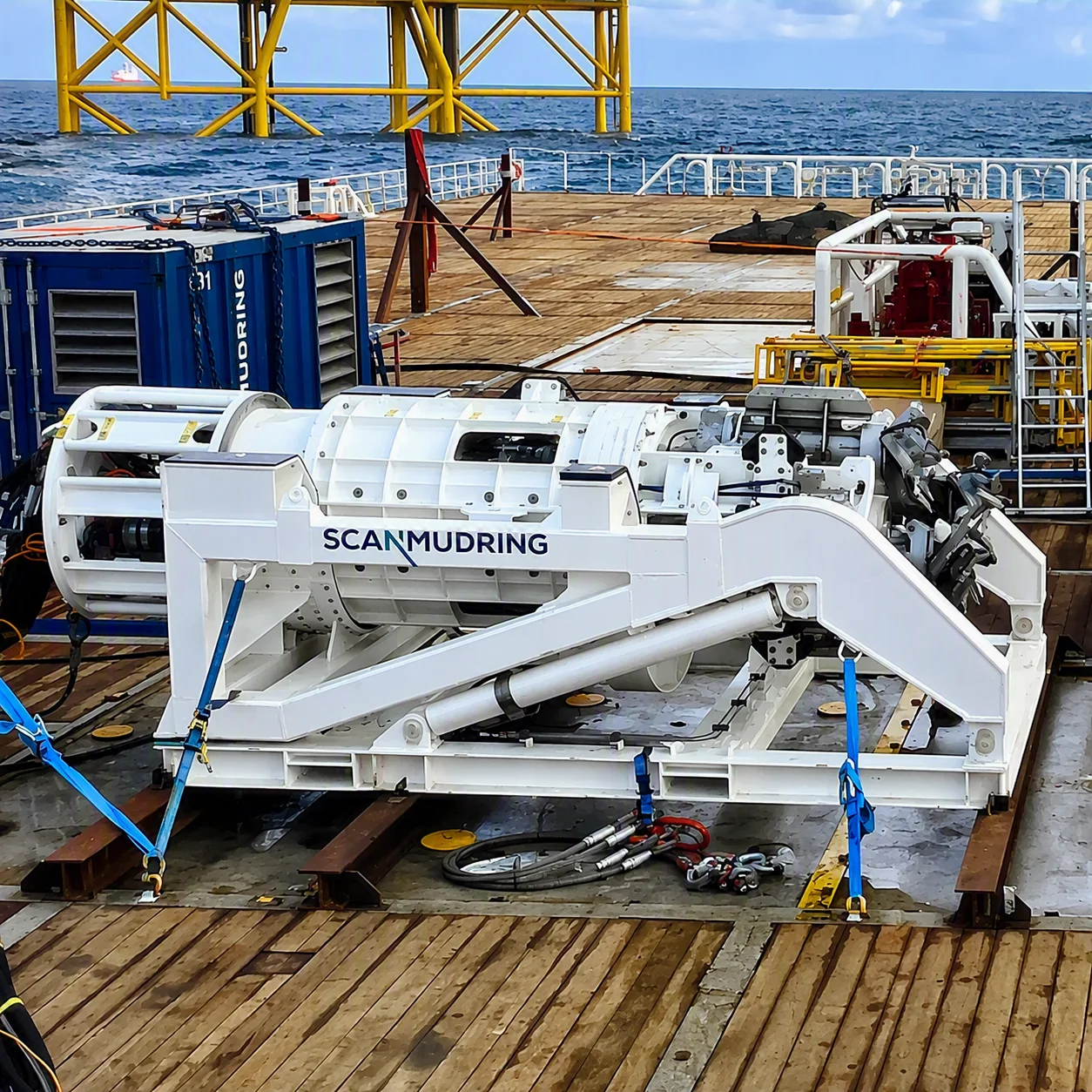

SPRT 03 is Scanmudring’s Soil Plug Removal Tool for internal excavation inside offshore foundation piles, developed for controlled plug breakup, removal, and wall cleaning across varying soil conditions. The tool can be configured with mechanical cutting heads and project-specific soil transport methods to match pile geometry, soil regime, and installation requirements.

• Configurable for pile diameters from Ø1350 mm toØ2200 mm

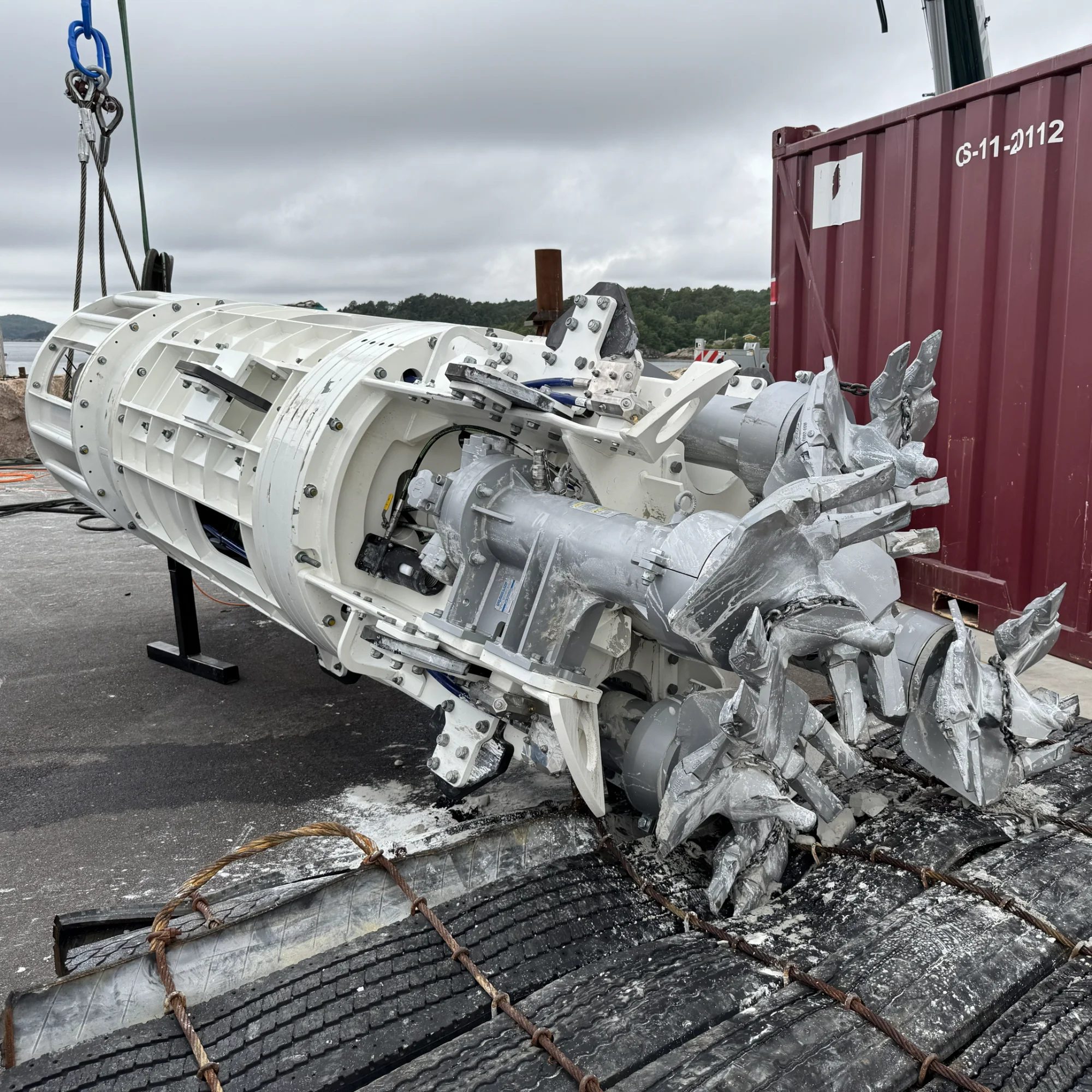

• Mechanical cutting options for clay or rock conditions
• Project-specific soil transport by airlift, ejector, or slurry pump
• Up to 1000 bar HP water jetting for wall cleaning and local soil agitation

‍

DIMENSION AND WEIGHT

OD range Ø1350–Ø2200 mm

Overall height 5,395 mm excl. exhaust

Weight in air 8,500 kg
