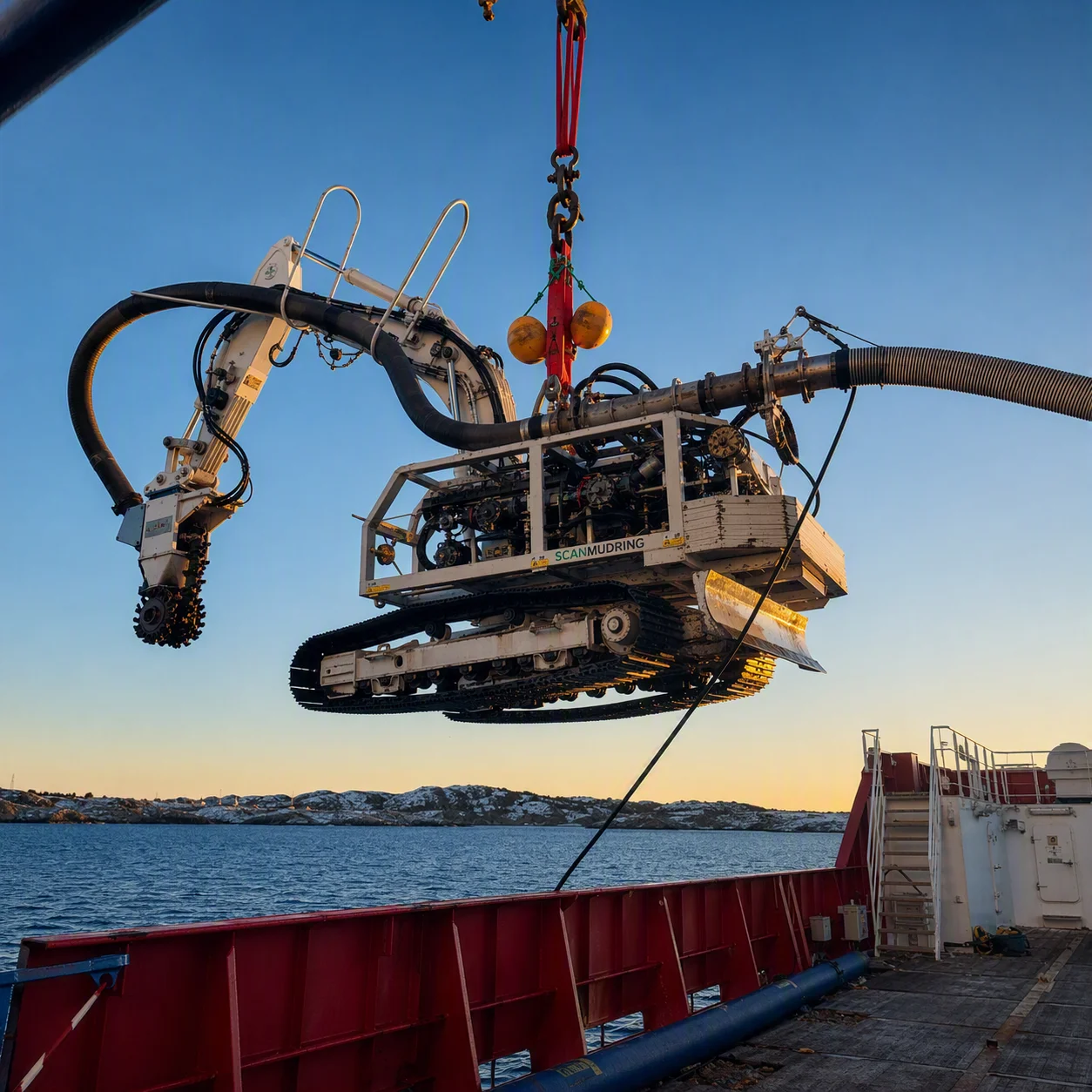

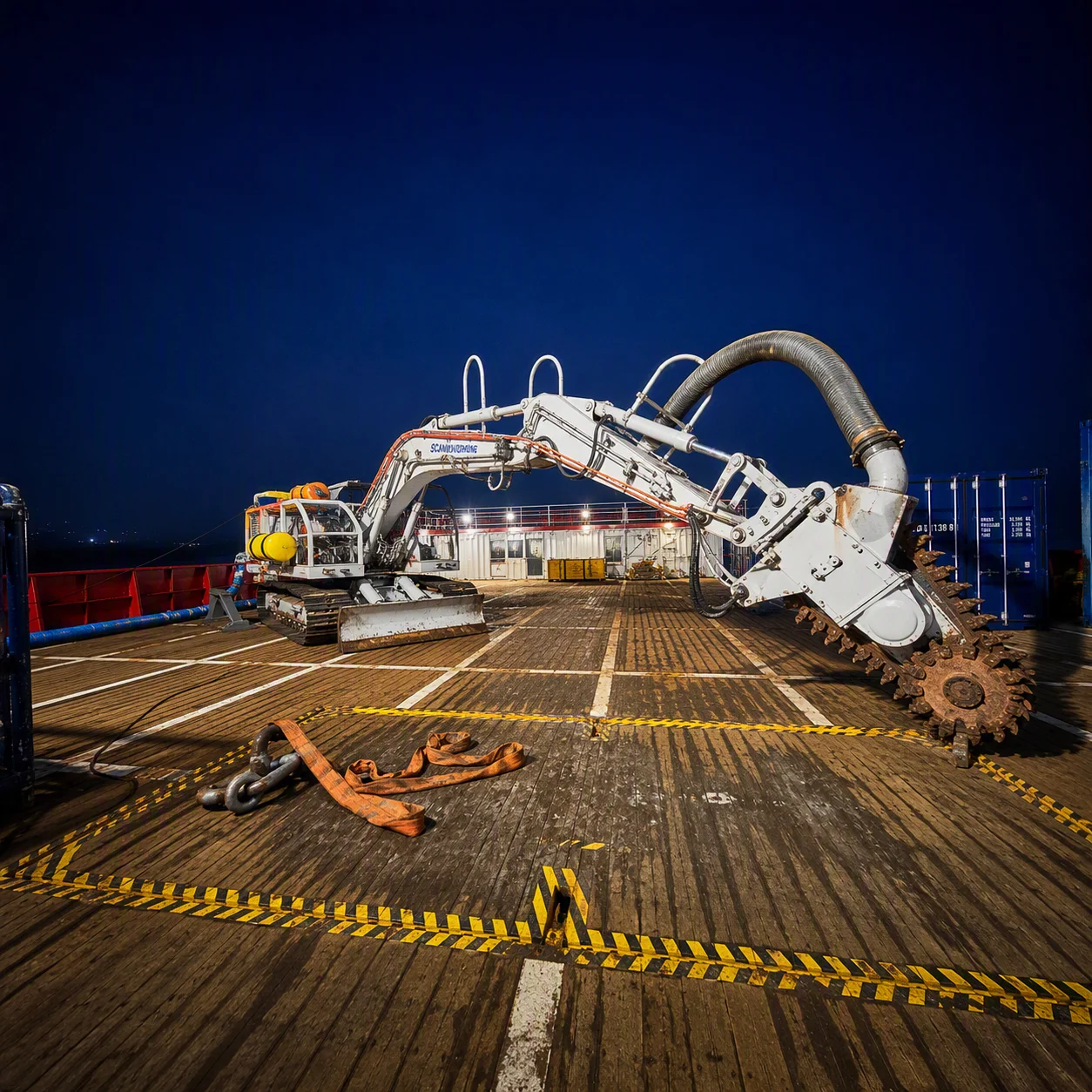

The Scanmachine 40Te is the most powerful model in theScanmachine range, delivering the highest subsea lifting capacity in the portfolio. Key features include:

• Maximum reach of up to 19 m, depending on tool configuration.
•  Lifting capacity of 17 Te at 3 m reach and 6 Teat 10 m reach, supporting a wide range of tooling options.
• Optional 3D live monitoring with sonar for real-time DTM generation and operator feedback.
• Fully electric downline for consistent performance at any operating depth.

‍

DIMENSION AND WEIGHT

Length x Width

11500  x 3930 mm

Overall, Height

3550  mm

Weight in air (max)

57.500  Kg
