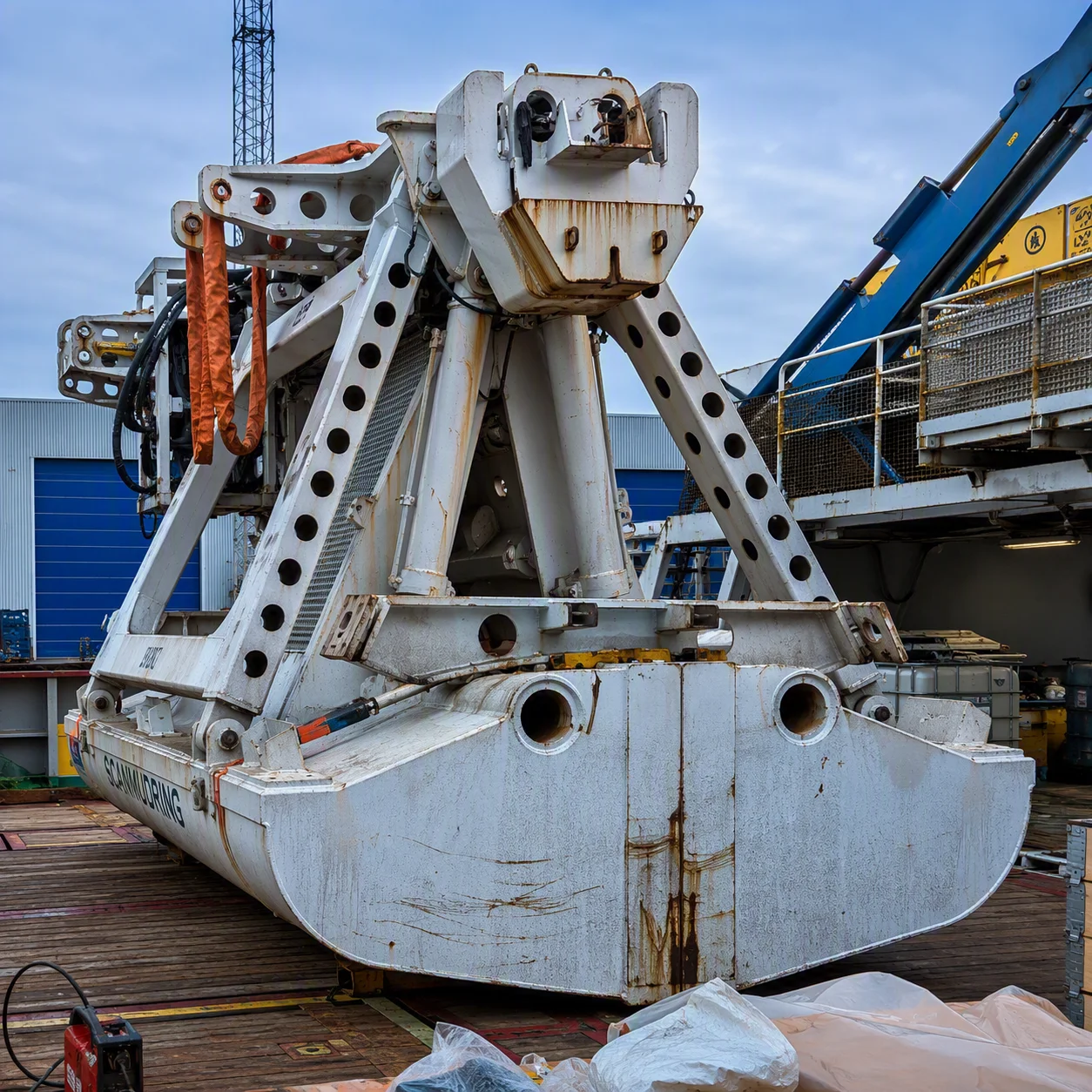

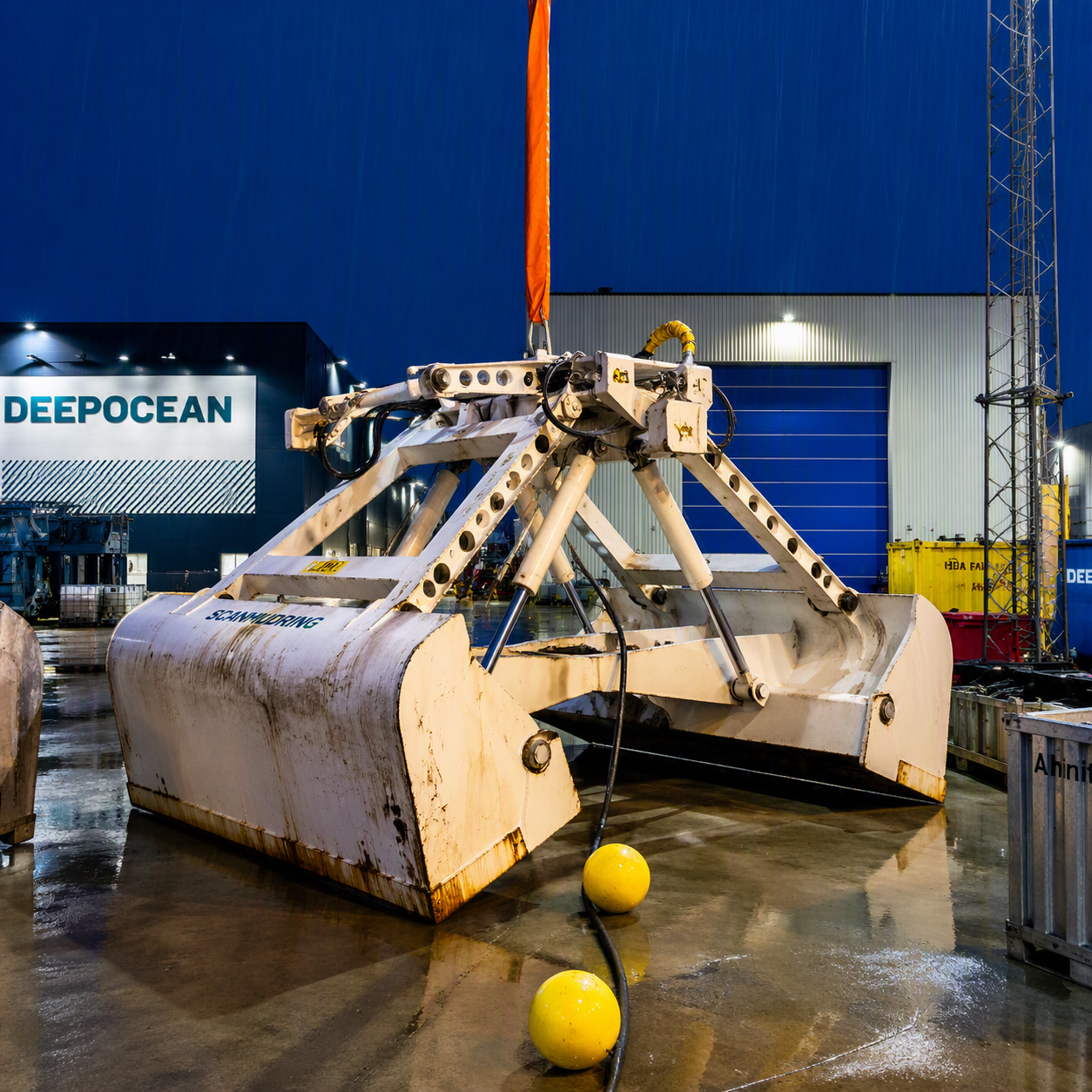

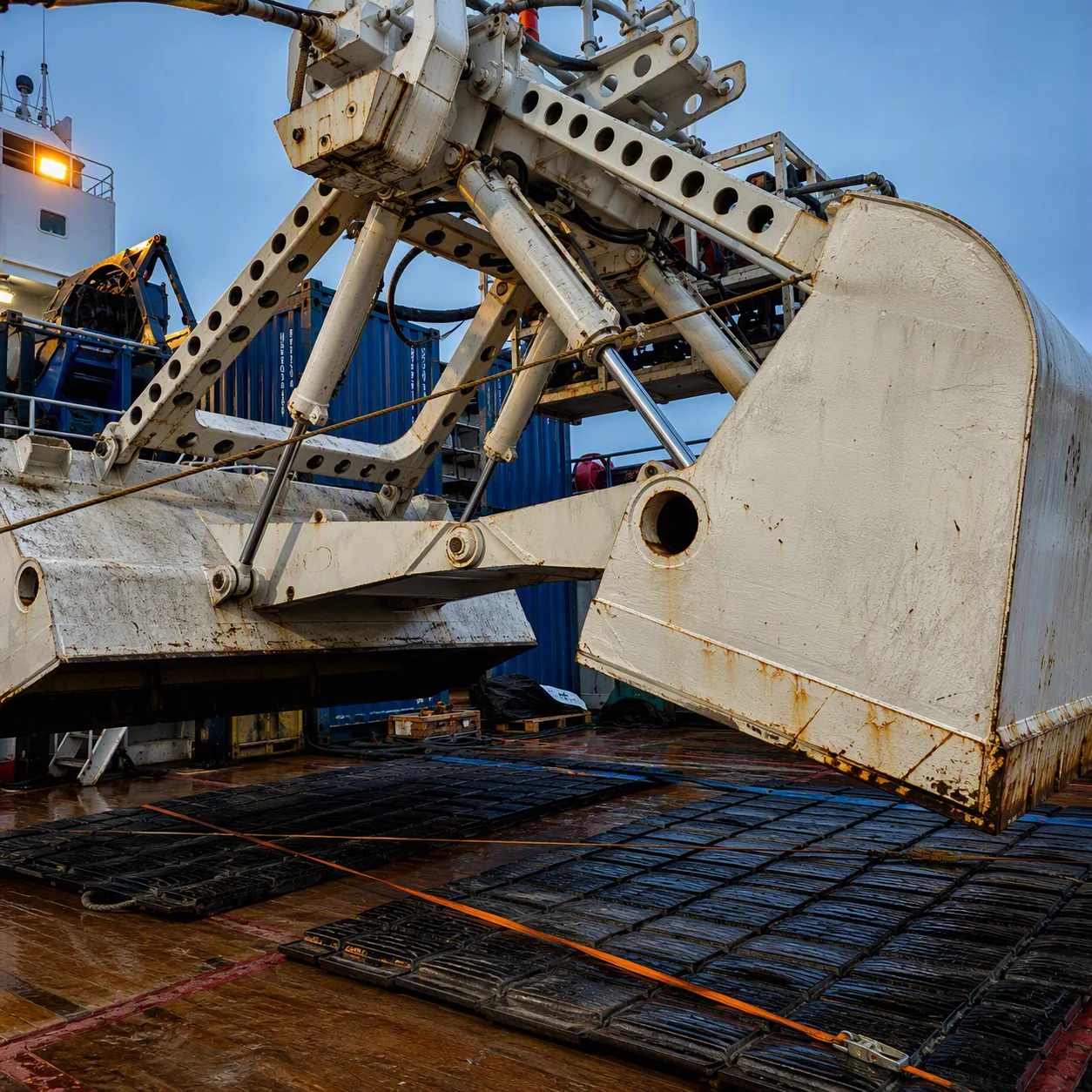

PG16 is Scanmudring’s large-capacity profiling grab for subsea levelling, free-span mitigation, and controlled material removal where predictable coverage and tight profile tolerances are required.

•       Designed for high-precision seabed levelling and free-span mitigation

•       16m³ scoop with approximately 32 m² levelled per scoop

•       Controlled cutting depth of approximately 0.5 m per grab

•       Profile tolerance of ±60 mm with optional tilt up to 30°

‍

DIMENSIONS  AND WEIGHT

Length × Width 3,759 × 5,090 mm

Overall height 4,530 mm

Weight in air 23,650 kg
