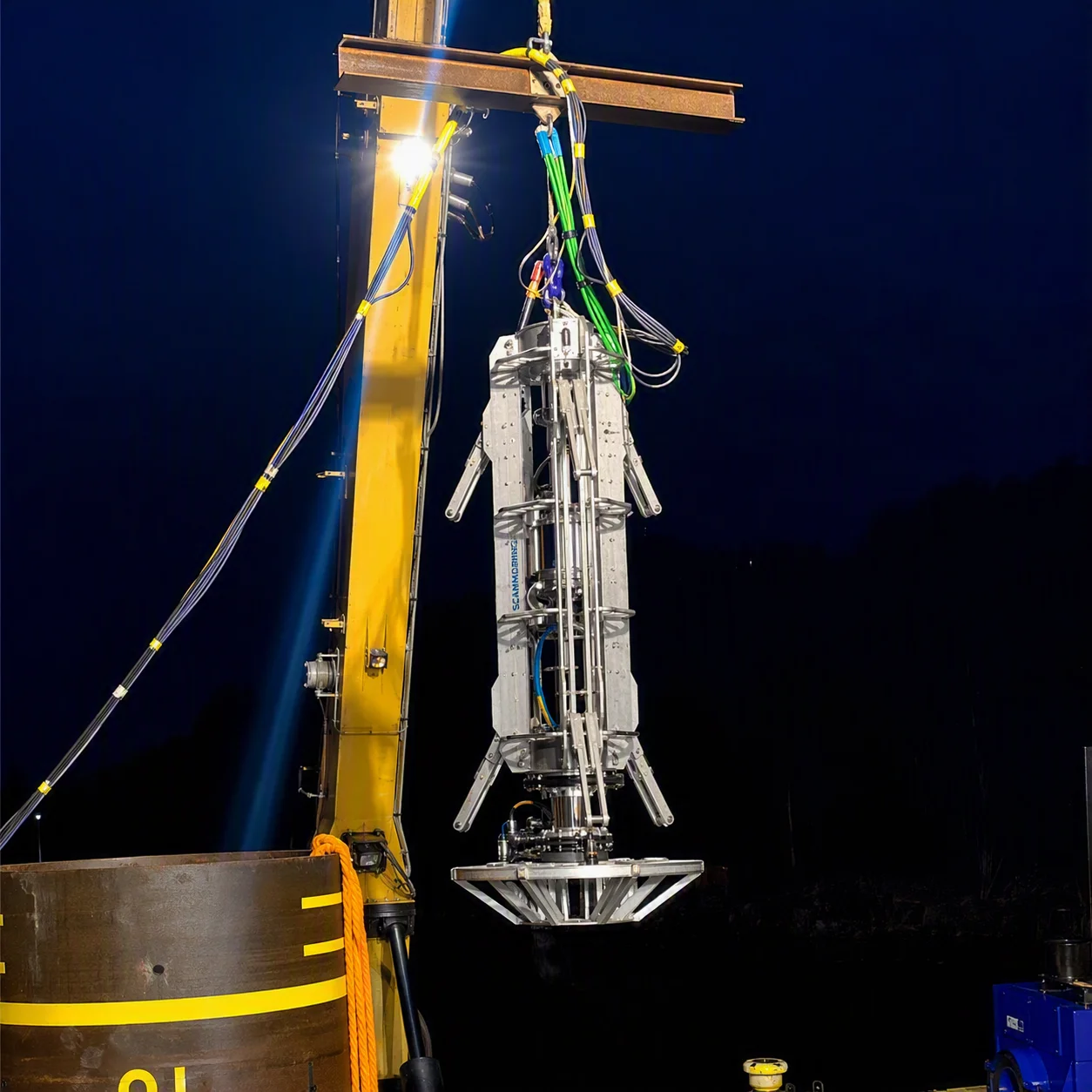

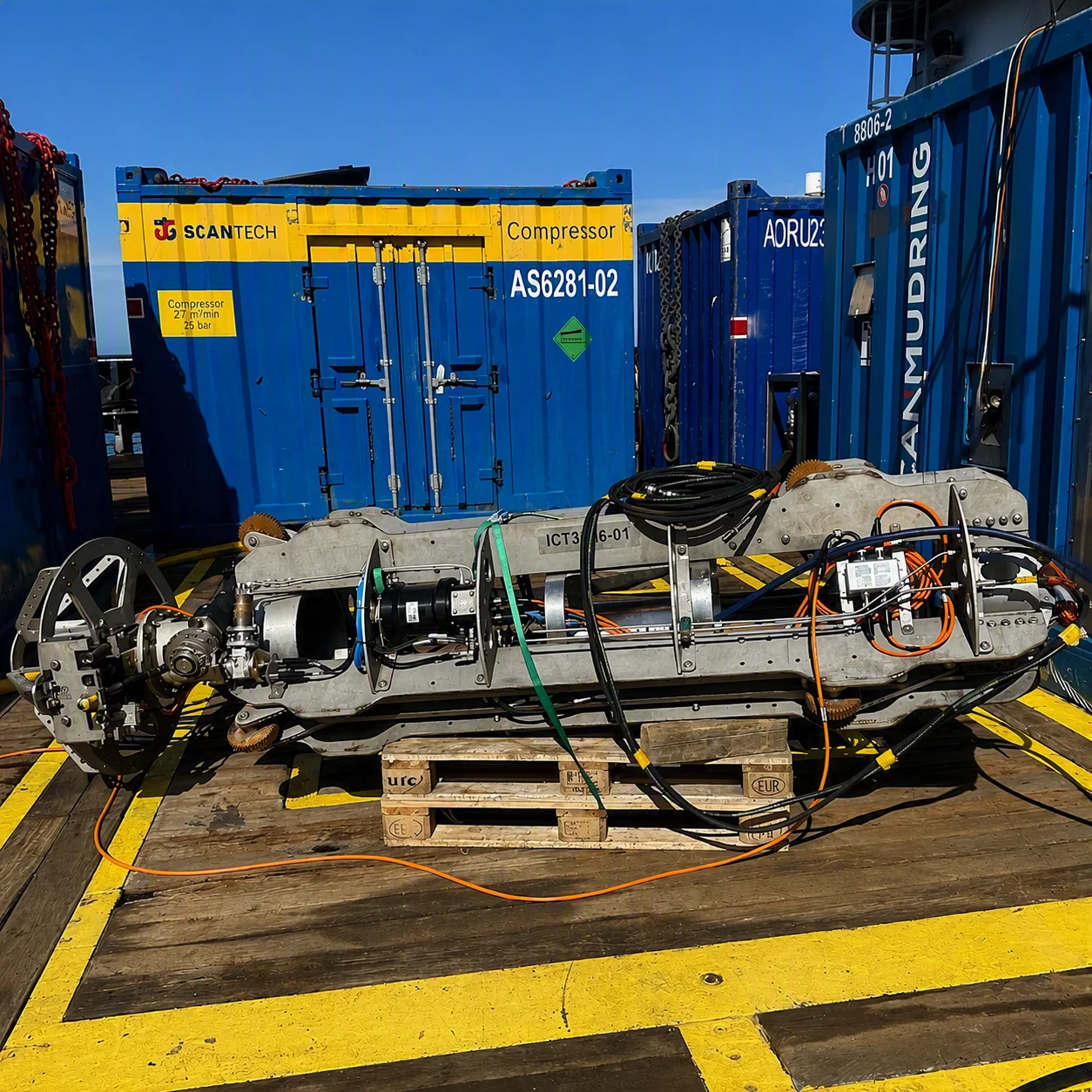

ICT3696 is Scanmudring’s large-diameter internal abrasive water jet cutting tool for controlled circumferential cuts inside tubulars. The submersible cutting manipulator uses six hydraulic locking arms and a spring-loaded nozzle assembly to maintain centralisation and stable stand-off during cutting, with support for bevelled cuts and integrated cut verification through SACS.

• Spring-loaded  nozzle assembly for stable stand-off during cutting
• Six  hydraulic locking arms for centralisation and secure attachment inside  tubulars
• Configurable  for bevelled cuts up to 45°
• Integrated  cut verification and sensors through SACS

‍

DIMENSIONS  AND WEIGHT

Diameter Ø855 mm

Overall length 3,225 mm

Weight in air 1,000–1,500 kg

Operating range Ø875–Ø2650 mm
