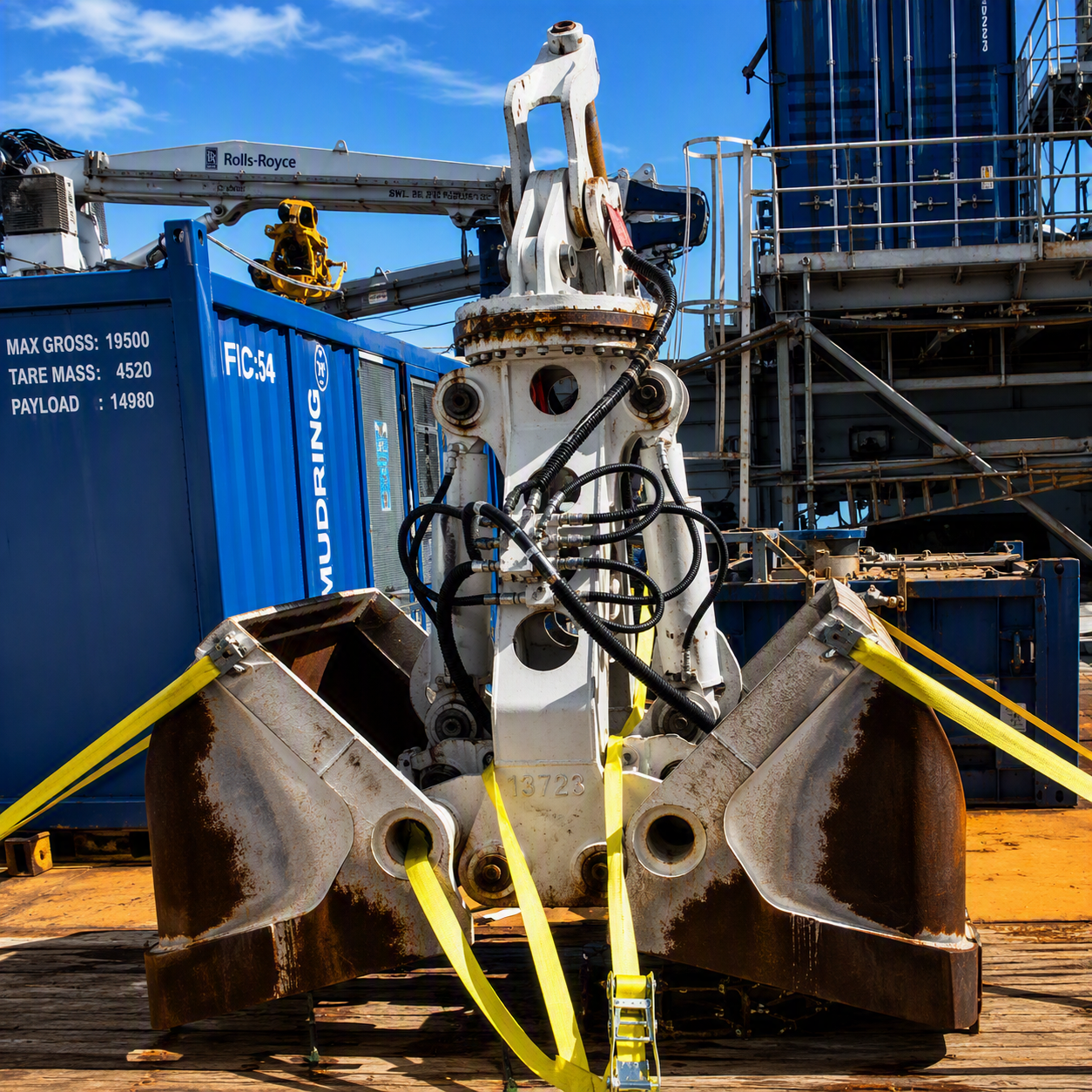

GHD02 is Scanmudring’s heavy-duty clamshell grab for subsea excavation, relocation, and coarse material handling where robust lifting performance and Scanmachine integration are required.

•  Compatible with Scanmachine 07 and 08
• 2,000 L grab capacity for materials up to 1.8t/m³
• 3,600 kg WLL and operating depth to 3,000 m

‍

DIMENSIONS  AND WEIGHT

Length × Width 1,530 × 2,190 mm

Overall height 3,700 mm

Weight in air 3,200 kg
