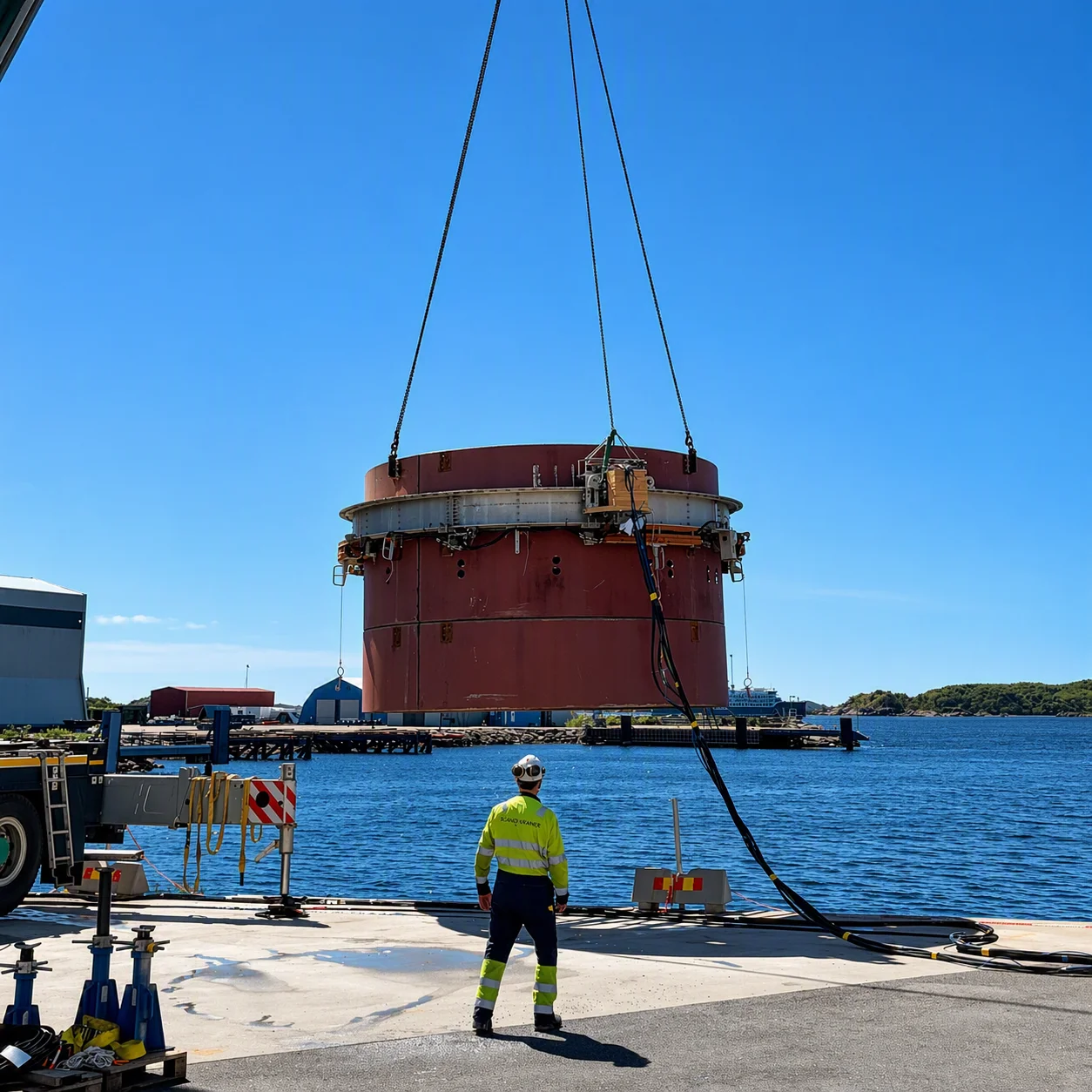

ECT 01 is Scanmudring’s abrasive water jet external cutting tool for controlled subsea circumferential cuts on tubular structures. The system combines a magnet-held guide ring with a clamp-on cutting trolley, supporting straight or bevelled cuts with integrated camera observation in shallow-water offshore modification and decommissioning scopes.

• Magnet-held guide ring with guide pin forcontrolled hang-off and positioning
• Hydraulic-driven clamp-on trolley with suspension arm and HD camera
• Abrasive water jet cutting at 1300 bar with1.2–1.4 mm nozzle ID
• Straight or bevelled cuts from 0–25° atoperating depths to 250 m

‍

DIMENSIONS  AND WEIGHT

Guide ring section 5,440 × 3,385.5 mm (4800  option, 180° section)

Trolley 928 × 846 × 1,165 mm

Weight in air Guide ring section 650 kg;  trolley 145 kg
