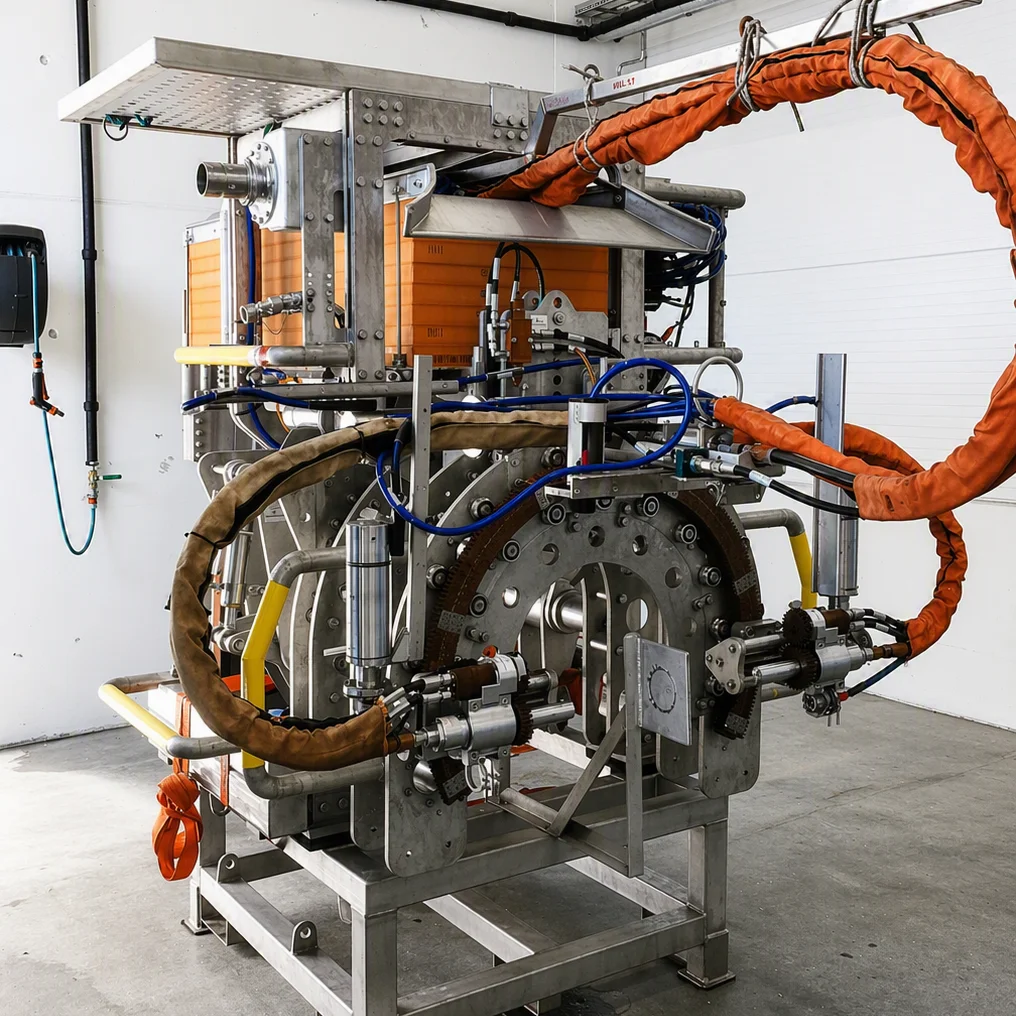

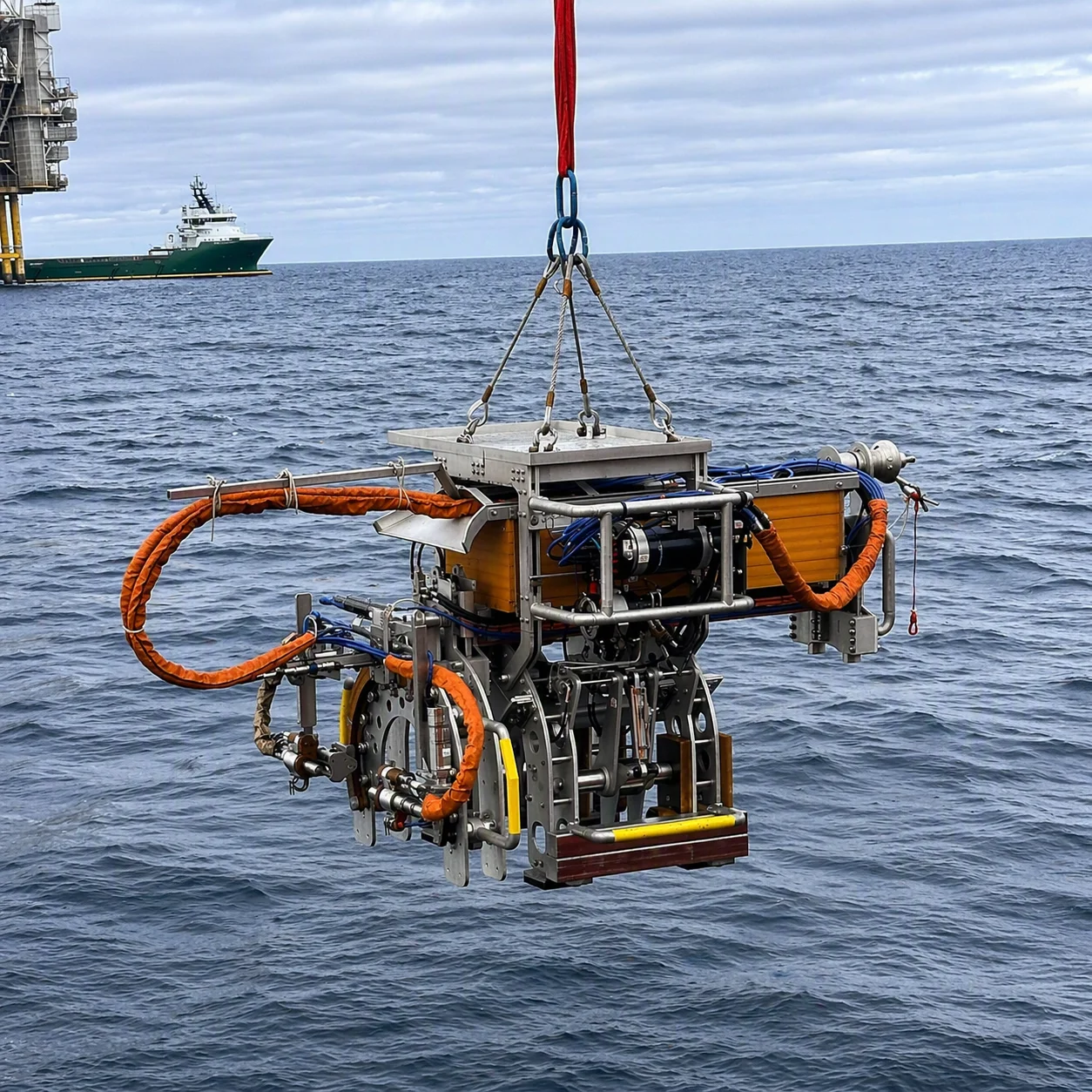

CRT 02 is Scanmudring’s high-pressure water jet coating removal tool for controlled subsea surface preparation on live pipelines. The system combines precise 360° nozzle control, stable crawler-based handling, and live monitoring to support diverless coating removal and inspection preparation.

  • High-pressure  water jetting up to 2,000 bar for coating removal on 4–28 in pipelines
  • Controlled  360° nozzle system for precise coating removal
  •  Stable  crawler and clamping system for controlled subsea operation
  • Live  video and position monitoring for diverless integration in ROV and  Scanmachine campaigns

‍

DIMENSIONS  AND WEIGHT

Length × Width 3,000 × 1,750 mm

Overall height 2,400 mm

Weight in air 2,000 kg

Weight in water 1,640 kg

Working range Pipeline OD 0–710 mm; coverage  0–360°

Knut Magne Johannessen
Business Development Manager
